Universal power adapter 600mA with tips EMOS

Description:

This universal power adapter is designed for powering various DC devices that require adjustable output voltage from 3V to 12V and up to 600mA current. It is a practical choice for compatible electronics where correct voltage selection is important.

The package includes interchangeable power connectors for broader compatibility with different devices. The stabilised output voltage helps maintain the selected level regardless of load, while the approximately 1.5m cable makes everyday use more convenient.

Key Features

• Product type: universal power adapter
• Adjustable output voltage: 3V to 12V
• Maximum output current: 600mA
• Maximum connected device input power: 7.2W
• Stabilised output voltage

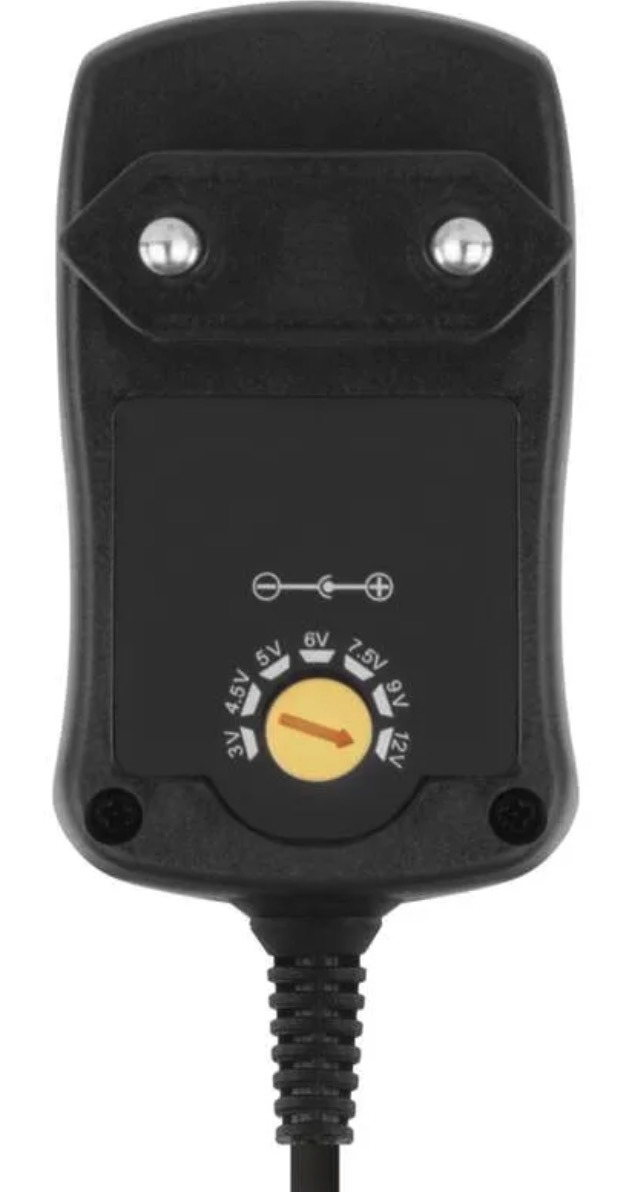

• 7 selectable output voltage levels
• Input voltage: 100–240V 50/60Hz

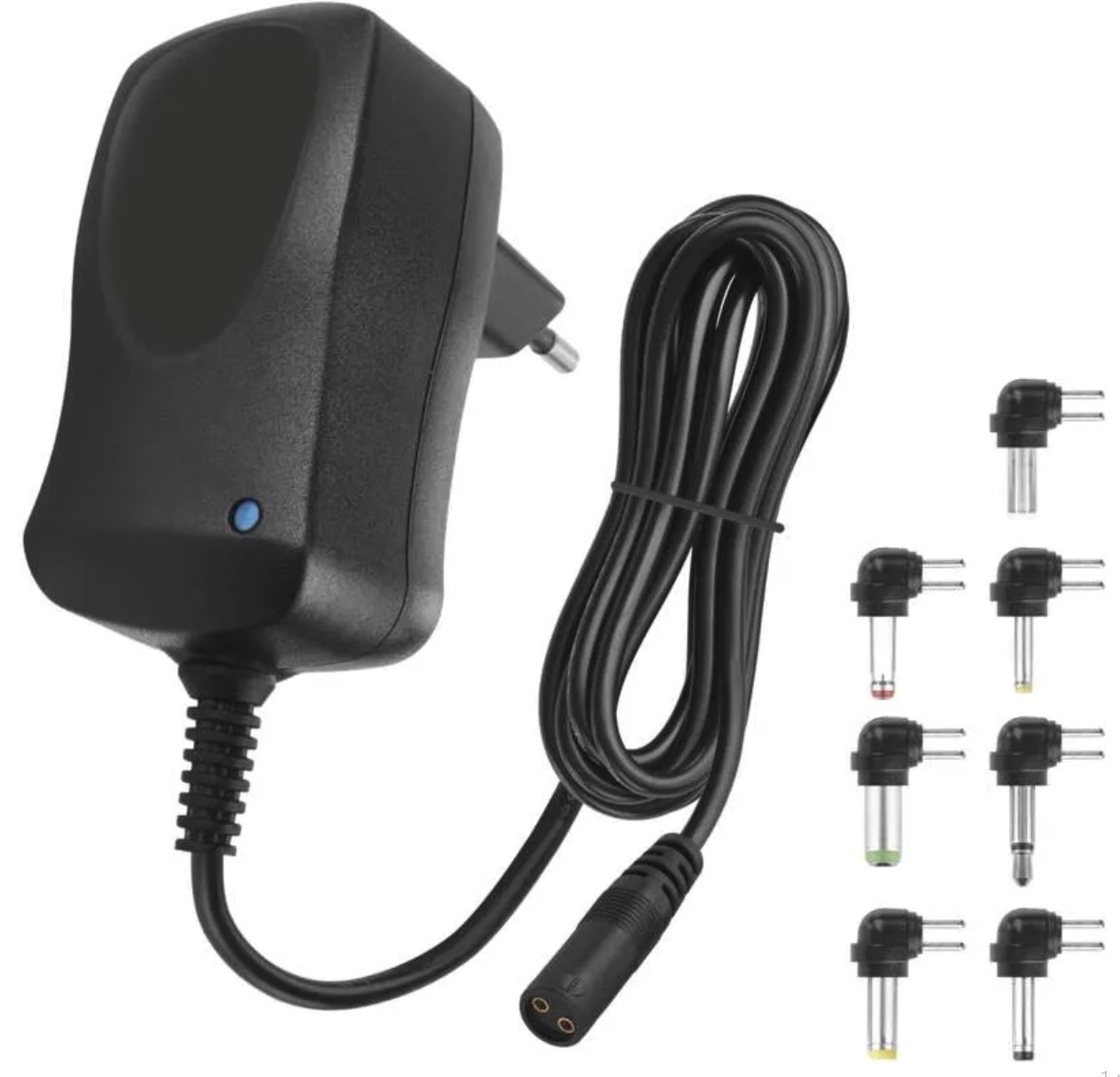

• Interchangeable power connectors included
• Cable length: approx. 1.5m
• Suitable for DC powered devices

Technical information:

• Brand: EMOS
• Order code: N3110N
• Product: universal power adapter with tips
• Input voltage, frequency and current: 100–240V~ 50/60Hz 0.35A
• Output voltages:
  • 3V 0.6A 1.8W
  • 4.5V 0.6A 2.7W
  • 5V 0.6A 3W
  • 6V 0.6A 3.6W
  • 7.5V 0.6A 4.5W
  • 9V 0.6A 5.4W
  • 12V 0.6A 7.2W
• Output tolerance: ±6%
• Max. output current: 600mA
• Average efficiency in active mode: 68.43%
• Cable length: approx. 1.5m
• No-load power consumption: less than 0.1W
• Operating temperature: 0 to 40°C

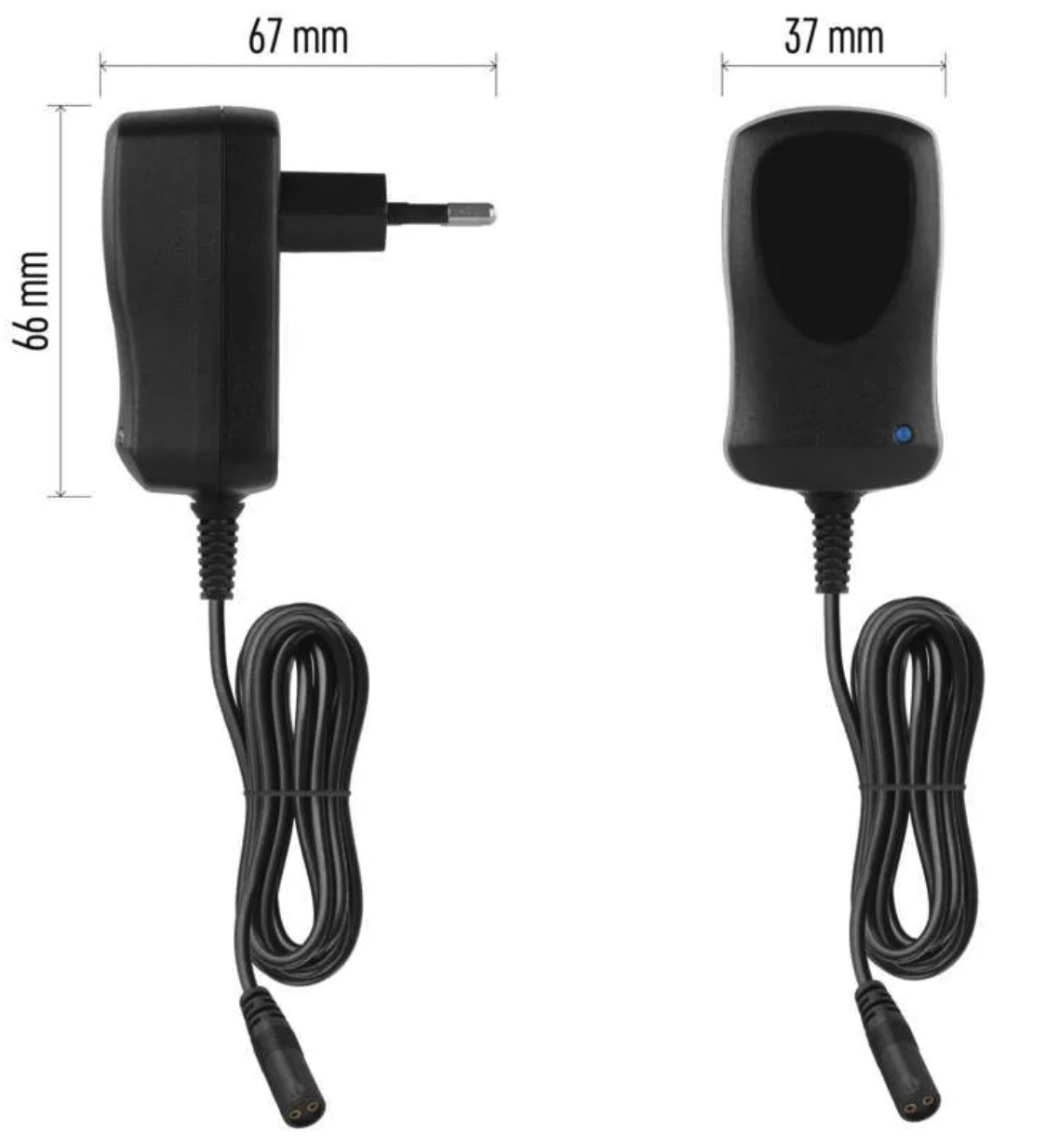

• Dimensions: 37 × 66 × 67mm
• Interchangeable connectors:
  • 3.5/15
  • 3.0 × 1.0/10
  • 5.0 × 2.1/12
  • 5.5 × 2.5/13
  • 3.5 × 1.35/11
  • 4 × 1.7/12
  • 2.35 × 0.75/8.75
