Doorbell transformer 8/12/24 V EMOS

Description:

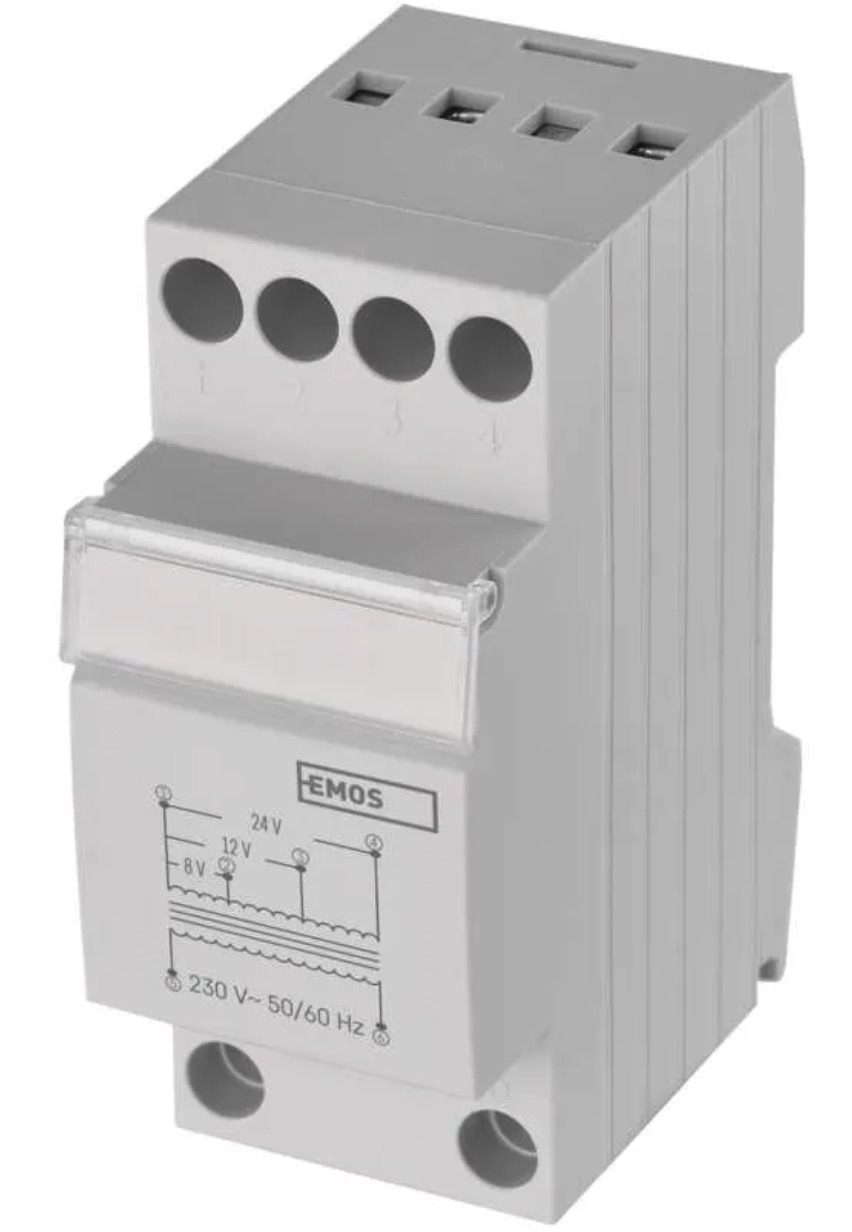

The EMOS doorbell transformer is designed for safe power supply of wired doorbells (f.ex. P57101, P57102) and other low voltage devices. It converts 230V mains voltage to 8V, 12V or 24V output, making it a practical choice for both residential and commercial installations.

Its compact size and DIN rail mounting allow quick installation inside distribution boards, even where space is limited. It is well suited for new electrical systems as well as upgrades of existing installations.

Key Features

• Designed for wired doorbells
• Input voltage 230V 50 60Hz
• Output voltage 8V 12V 24V
• Output current 0,3A
• Power 8W
• DIN rail mounting
• Suitable for switchboard installation
• White housing

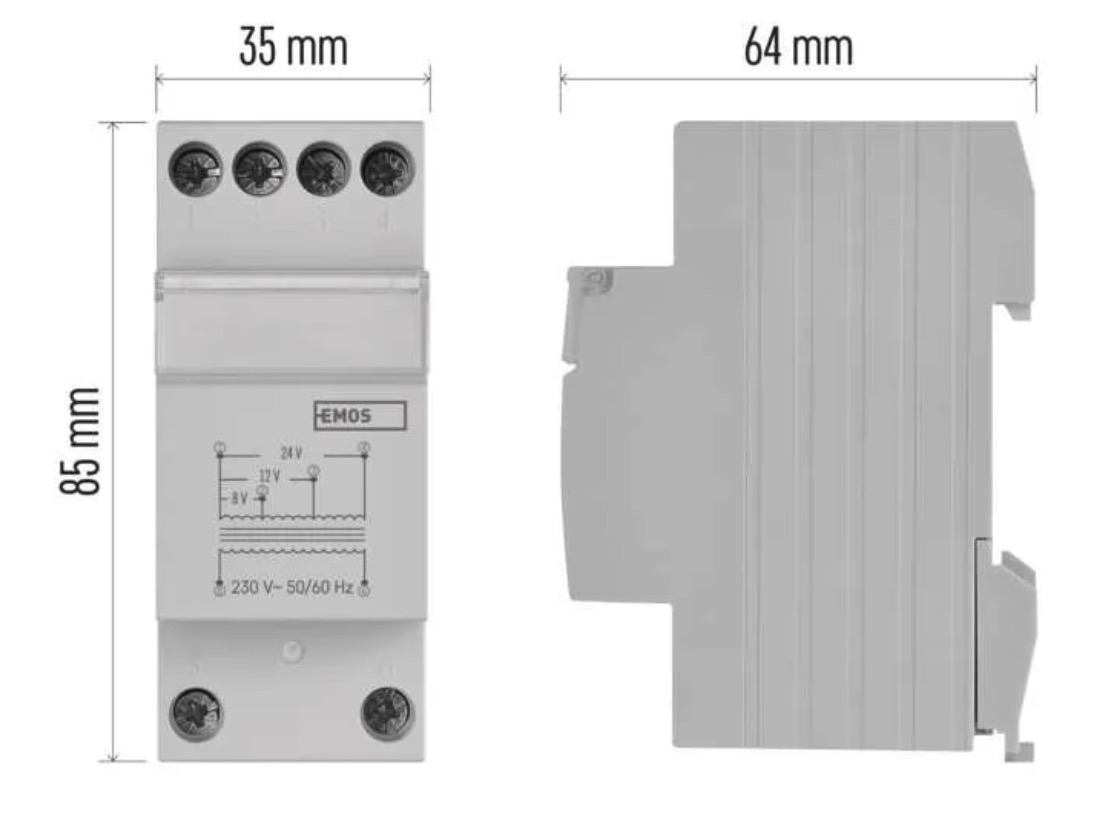

• Compact dimensions 85 × 64 × 35mm
• Suitable for residential and commercial use

Technical information:

• Brand: EMOS
• Catalog number: P57000TR
• Product number: 3401570000
• EAN: 8592920140635
• Product: doorbell transformer
• Intended for: wired doorbells
• Input voltage: 230V~ 50 60Hz
• Output voltage: 8V 12V 24V
• Output current: 0,3A 8W
• Charging: no
• Color: white
• Weight: 338g
• LED indication: no
• Dimensions: 85 × 64 × 35mm
